TCD Digital Force Testers

Previous 2 / 4 Next

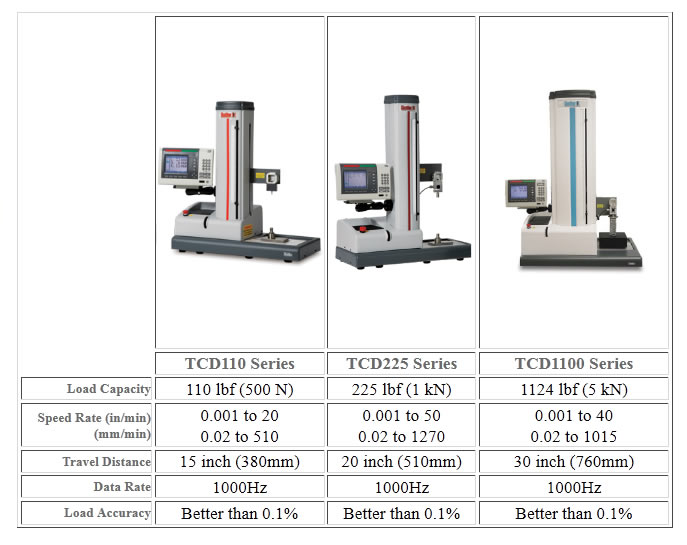

TCD Digital Force Testers Chatillon


Single Column Digital Force Testers

The Chatillon® TCD Series are advanced force testing systems optimized for production, quality control and engineering applications. The TCD System consists of a powerful, yet easy-to-use console; a rugged frame with high performance, closed-loop motion control; and an intelligent load sensing system with measuring accuracies better than 0.1% full scale. The TCD console features a high resolution color graphical display featuring menus, function and numeric keys and status indicators that assist the user in setup, operation and analysis. Information may be displayed in large-format tabular and graphical formats for easy viewing. The TCD System can be used for tensile, compression, shear, friction, flextural and complex spring testing. The TCD System may also be used to measure heights based on a datum or absolute position. Deflection compensation is standard. Standard test setups for load limits, distance limits, time limits, break tests, rupture tests, cycling and loop tests are included. No Computers. No Software. No Compromises.


Features

  • Advanced, Simple to Use Force Testing Setups that You Create Graphically
    - Limit Testing (Load, Distance, Time)
    - Break & Rupture Testing
    - Cyclic & Loop Testing (Time or Count)
    - Multi-Stage/User Defined Testing per ISO and ASTM Specifications
    - Open Architecture
    Does not require computers or proprietary software applications!
  • Use for Height Measurement
    - Ideal for Accurate Spring Testing
  • Advanced Operator Interface based on Metronics Gage Chek Architecture
    - Simple Operation with Templates, Menus & Prompts
    - Tabular & Graphical Results including embedded SPC
    - Multiple Display Languages- English, Spanish, Portuguese, French, German, Italian, Chinese (Simplified), Chinese (Traditional), Korean, Russian, Turkish, and more
  • Data Acquisition at full 1000 Samples per Second (user-selectable from 1 to 1000Hz)
    - Save Data to USB Flash Drive
    - Direct Import into Excel or other OLE2 Compatible Applications
  • Ultimate Security
    - Save Tests and Operate from USB Flash Drive
    - Create Tests and Upload into Production Machines
    - Use Bar Code Scanner to Automatically Call a Test for the Authorized User
    - Save and Transfer Raw Data, Results, Test Setups using USB Flash Drive

Applications

  • Adhesives
  • Automotive
  • Biomedical
  • Ceramics
  • Composites
  • Construction
  • Enclosures
  • Food Texture
  • Medical Device
  • Metal
  • Packaging
  • Paper
  • Plastic
  • Springs
  • Textile
  • Wood
